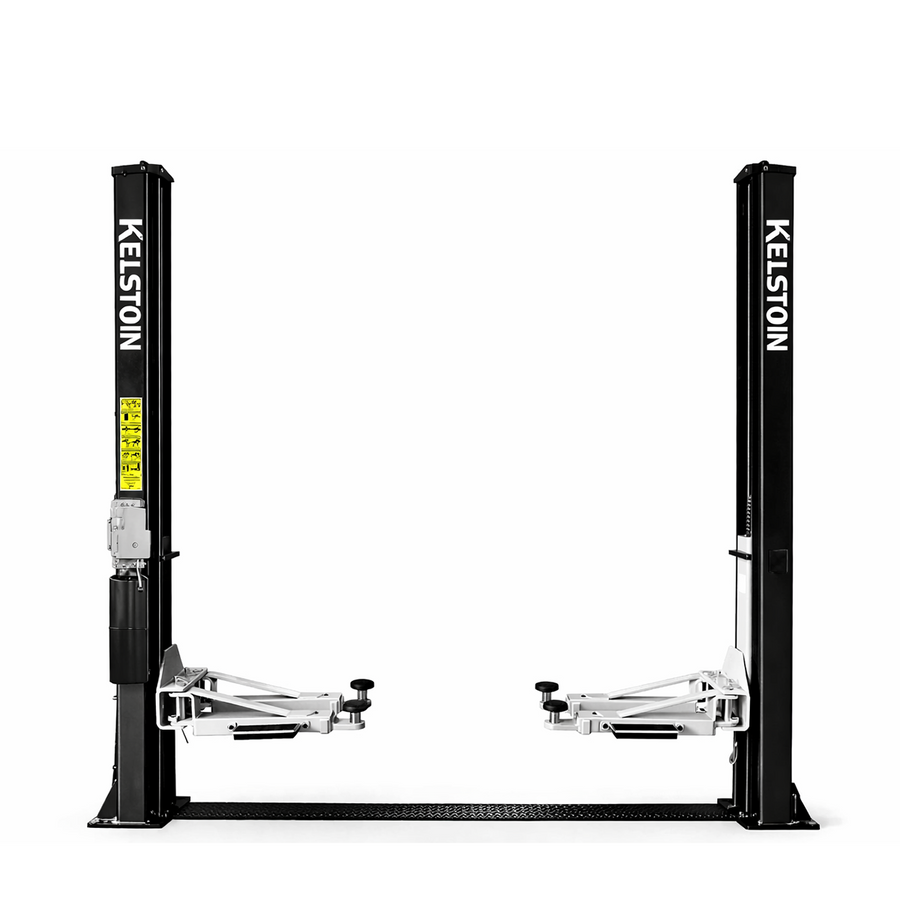

Two Post Hoist Base Model
* Single/Three Phase Aluminum Motor
* Strengthen 8 Bend Post
* Automatic Stop At Maximum Lifting Height
* Mechanical Safety Latch With Dual-Side Manual Lock Release
* Vehicle Door Anti-Crush Rubber Protection
* Synchronization Of Hydraulic Cylinders Independent From Load Distribution With Cable Leveling System
* Swing Arm Support With High Quality Wear-Resistant Rubber Pads
* Two Stage Symmetrical Arm Mixed
* Use Double Cylinder, Chain And Steel Rope To Balance, Make Sure The Lift Moving Smoothly
Lift Capacity: 4000KG
Lift Height: 1912mm
Min Lift Height: 95mm
Overall Height: 2860mm
Overall Width: 3560mm
Width Between Columns: 2784mm
Lifting Time: Approx 35s
Falling Time: 20s
Warranty:
Five years warranty on structure. Two years warranty on parts.
