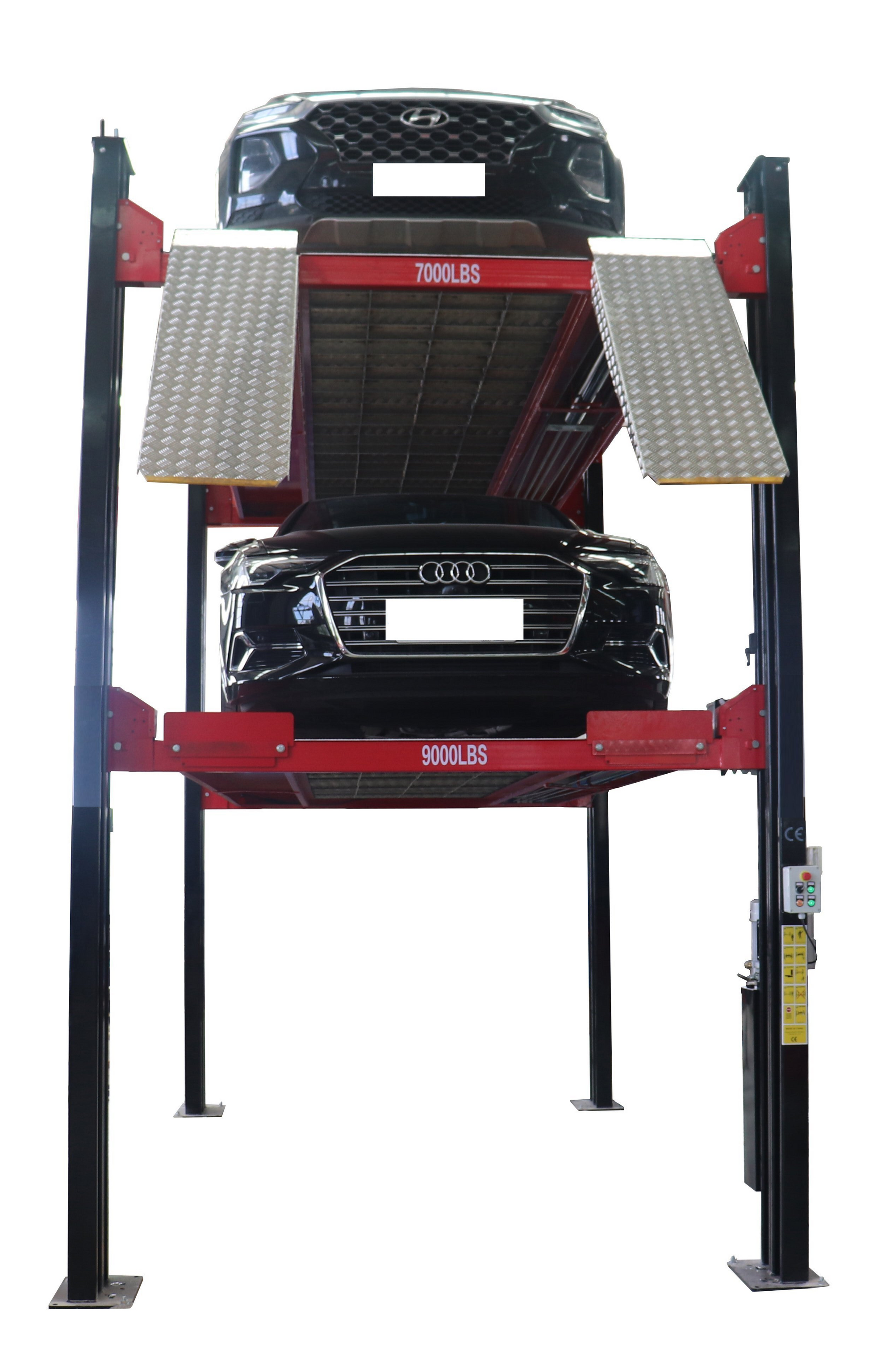

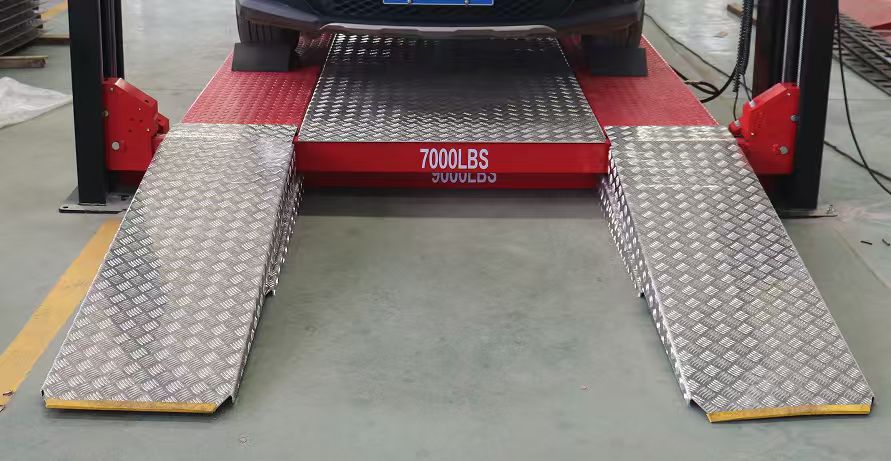

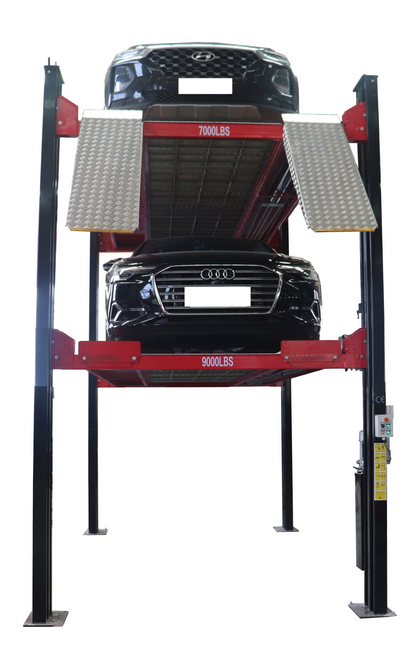

Four Post Hoist - FP4032T
Specification:
|
Lift capacity |
First level 4000KG, Second level 3200KG |
|
First level lift height |
1800mm |
|
Second level lift height |
1800mm |
|
Overall height |
4368mm |
|
Overall width |
2576mm |
|
Overall length |
5862mm |
|
Power |
2.2KW |
Feature
Suitable car parking and car storage with double wide parking lift design

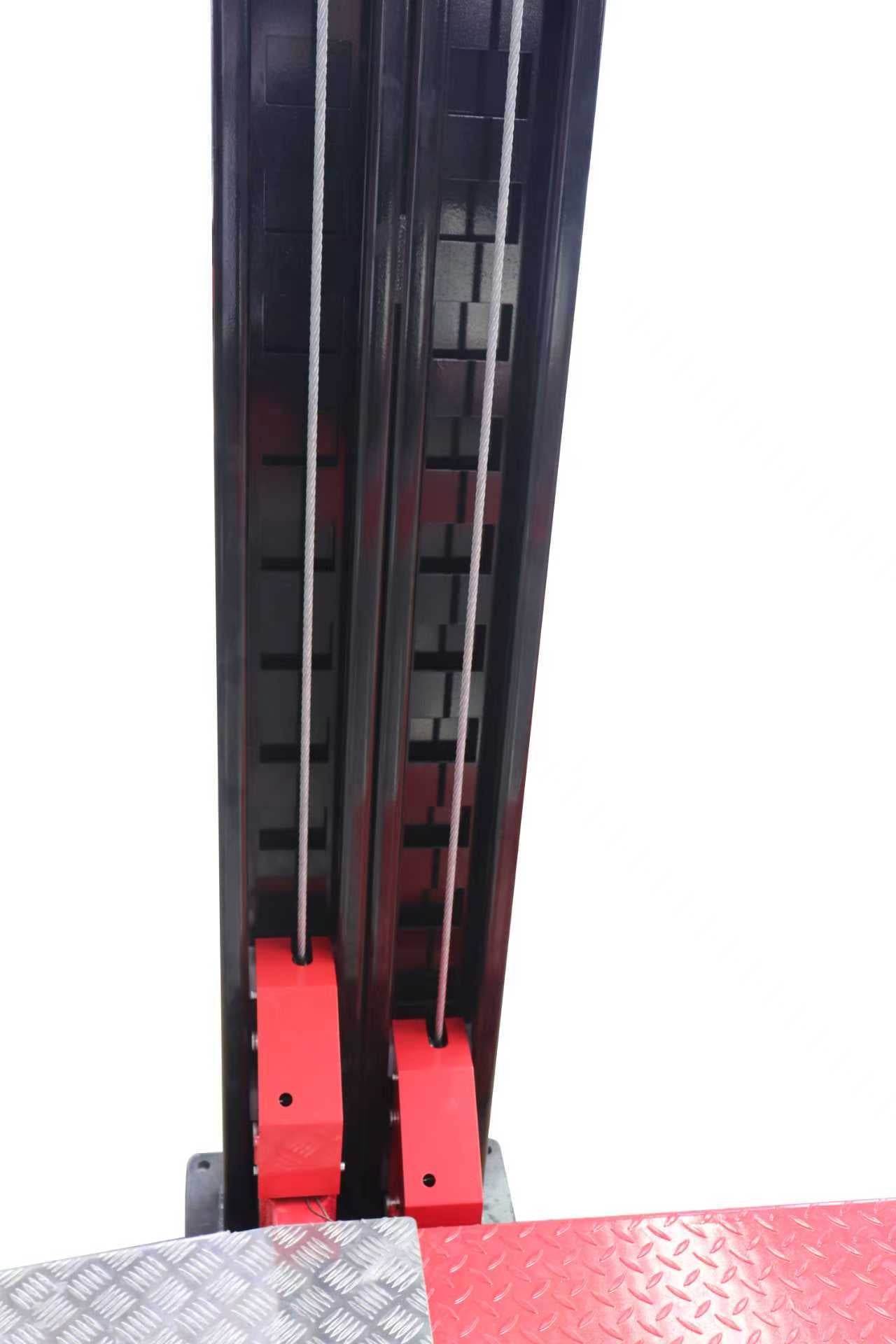

Cable balancing system and hydraulic driven design
Full way ladder lock with cable brake function and hook lock design can make sure safety and reliability.
24V electric lock release
High density sliding rubber block with long life using
High strengthen pattern steel molding for the platform
Italy oil cylinder seal
115% dynamic and 150% static loading test passed
Caster and oil drip tray are included
CE approved.
Optional:
1.Middle wave plate or middle pattern steel cover
2.Runway side board
3.Max lift height 2000/2000mm and 2100/2100mm
